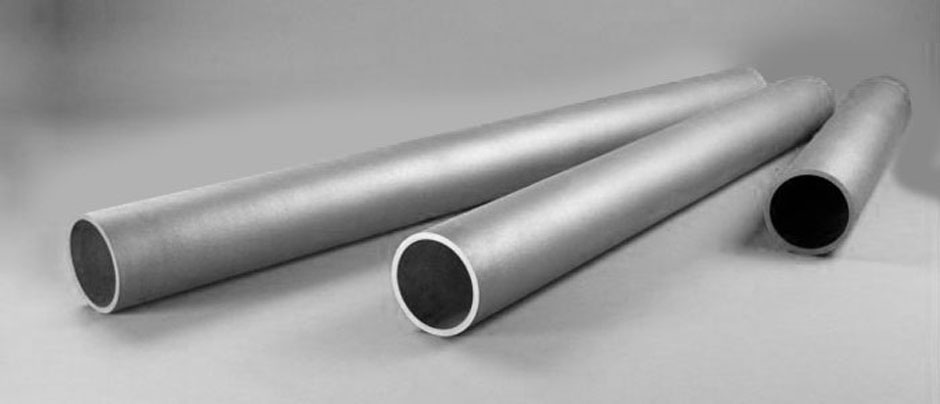

Stainless Steel 410 Pipe

Standards	Seamless Pipe
ASTM	A 312
ASME	SA 312

Origin: West Europe / Japan / Indian / USA / Korean

Dimensional Range:

Product Name	ASTM A312 TP 410 Stainless Steel Seamless Pipe
Range	6NB to 1200NB - SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.
In Form of	Round, Square, Rectangle, Oval, Coil, Flexible Pipe, Shaft, ‘U’ Shape, Hydraulic pipe, Honed Tubes
In Length of	Standard & Cut length
Special Pipes	Fabricated Pipe (with radiography)
Value Added Service	Draw & Expansion as per required Size & Length Polish (Electro & Commercial) Heat Treatment Bending Annealed & Pickled Sand Blasting Machining Etc.
Material Grade (AISI /TP)	AISI TP 304, TP 304H, TP 304L, TP 304LN, TP 316, TP 316H, TP 316L, TP 316LN, TP TP 316Ti, TP 309, TP 310, TP 317L, TP 321, TP 347, TP 409, TP 410, TP 420, TP 430, TP 446, TP 202 Etc.
	0cr18N9, 00Cr19Ni10, 0Cr25Ni20, UNS31803, S31500, S32750, 2205, 904L Nickel Alloy 600, 625, 800, 825, 718
TEST CERTIFICATES	MTC, IBR & Third Party Inspection Manufacturer Test Certificate Laboratory Test Certificate from Govt. Approved Lab. Under Third Party Inspection
Specialize	Fabricated Pipe Square & Rectangle & Other Odd Size
Specification:	ASTM A 269/A 213/A 312 / EN10216-5 /EN ISO 1127 D4/T3/EN 10305 / PED 97/23 EC
Maximum exposure temperature:	850°C / 1560°F

PIPE TUBE TYPE	NB SIZES	SCH 5	SCH 10	SCH 40	SCH 80	SCH 160
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1/8"	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1/4"	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	3/8"	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1/2"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	3/4"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1 1/4"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	1 1/2"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	2"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	2 1/2"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	3"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	4"	✓	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	5"	✓	✓	✓	✓
ASTM A312 TP 410 Stainless Steel Seamless Pipe	6"	✓	✓	✓	✓

ASTM A312 TP 410 Stainless Steel Seamless Pipe related products in our warehouse / inventory:

RANGE	1/2" OD – 12" OD, Guage: 25 SWG – 10 SWG
IN FORM OF	Round, Square, Rectangle, Oval, Coil, Flexible Pipe, Shaft, ‘U’ Shape, Hydraulic pipe, Honed Tubes

Material of construction

STAINLESS STEEL	ASTM A213 & A249, TP304, 304L, 304H, 316, 316L, 316H, 316Ti, 309, 310, 317L, 321, 347, 904L
DUPLEX	ASTM A999 / A999M UNS S31803 & S32205 (2205)
SUPER DUPLEX	ASTM A999 / A999M UNS S32750 (2507) & S32760
ALLOY STEEL	ASTM A213 Gr. T2, T5, T5B, T5C, T11, T12, T17, T22 ASTM / ASME A 335 Gr P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91
NON FERROUS	Copper, Aluminium, Brass, Copper Alloys.
TEST CERTIFICATES	MTC, IBR & Third Party Inspection.
OTHER GRADES	Looking for quick reply, please mail us at lgpipe@gmail.com

Composition of 410 Stainless Steel Pipes and Tubes Typical compositional ranges for grade 410 stainless steels are given in table 1. Table 1. Composition ranges for 410 grade stainless steel

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
410	min. max.	- 0.15	- 1.00	- 1.00	- 0.040	- 0.030	11.5 13.5	-	0.75	-

Table 2. Mechanical properties of 410 grade stainless steel

Tempering Temperature (0C)	Tensile Strength (MPa)	Yield Strength 0.2% Proof (MPa)	Elongation (% in 50mm)	Hardness Brinell (HB)	Impact Charpy V (J)
Annealed *	480 min	275 min	16 min	-	-
204	1310	1000	16	388	30
316	1240	960	14	325	36
427	1405	950	16	401	#
538	985	730	16	321	#
593	870	675	20	255	39
650	755	575	23	225	80
* Annealed properties are specified for Condition A of ASTM A276, for cold finished bar. # Due to associated low impact resistance this steel should not be tempered in the range 425-6000C

Table 3. Physical properties of 410 grade stainless steel in the annealed condition

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
410	7750	200	9.9	11.4	11.6	24.9	28.7	460	570

Grade Specification Comparison of 410 Stainless Steel Pipes and Tubes Table 4. Grade specifications for 410 grade stainless steel

Grade	UNS No	Old British		Euronorm		Swedish SS	Japanese JIS
		BS	En	No	Name
410	S41000	410S21	56A	1.4006	X12Cr13	2302	SUS 410
